Long-Range MIMO Mesh Radios

Doodle Labs makes the world's most advanced broadband radios for Private Wireless Networks. We focus on the development of industrial-grade, long-range broadband wireless solutions to meet the challenging performance requirements of Industrial IoT applications. When you partner with us, we will work with you to design an innovative wireless system. The completed product will provide you with a rugged, high throughput, long-range data solution for even your most complex projects. Our products have been used by many Fortune 100 companies in a variety of demanding applications. Please get in touch to see how we can help develop a unique solution for your wireless communications needs.

About Doodle Labs

Doodle Labs was founded in 1999 with the mission of creating wireless broadband solutions for Industrial IoT applications. We have offices in the United States, Germany and Singapore and our customers span the entire globe.

With every custom or off-the-shelf product we create, our goal is to allow our customers to go to market as quickly as possible with the best products at the lowest cost. When choosing a design, we strive to achieve the best performance with the fewest necessary integrations.

We use only tier-one parts and industry-accepted manufacturing processes during production to ensure quality. We test and calibrate every unit prior to shipping. As a result, our radios have stood the test of the most severe military and industrial requirements.

Products

Our long-range broadband radios and transceivers will help you successfully implement even the most complex Industrial IoT (IIoT) applications. Our products are used to establish high-throughput data links over extremely far distances through broadband technology so your devices always stay connected in any environmental condition. Our products have the highest performance and the lowest overall cost in the industry.

Smart Radio

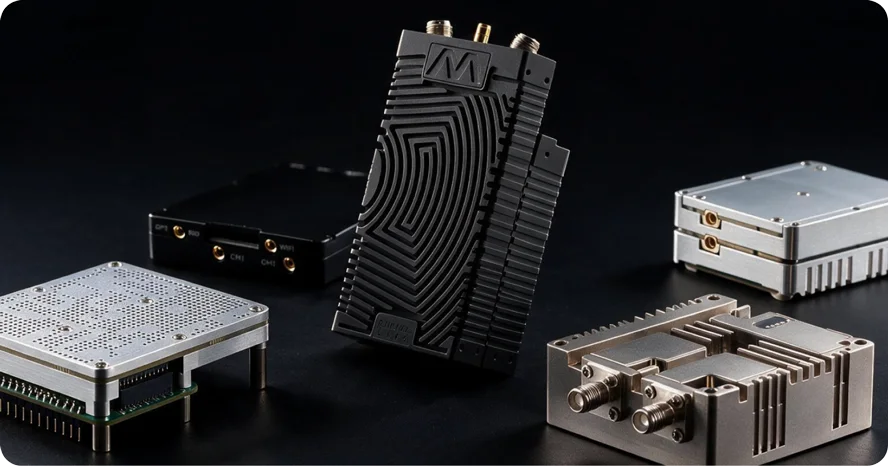

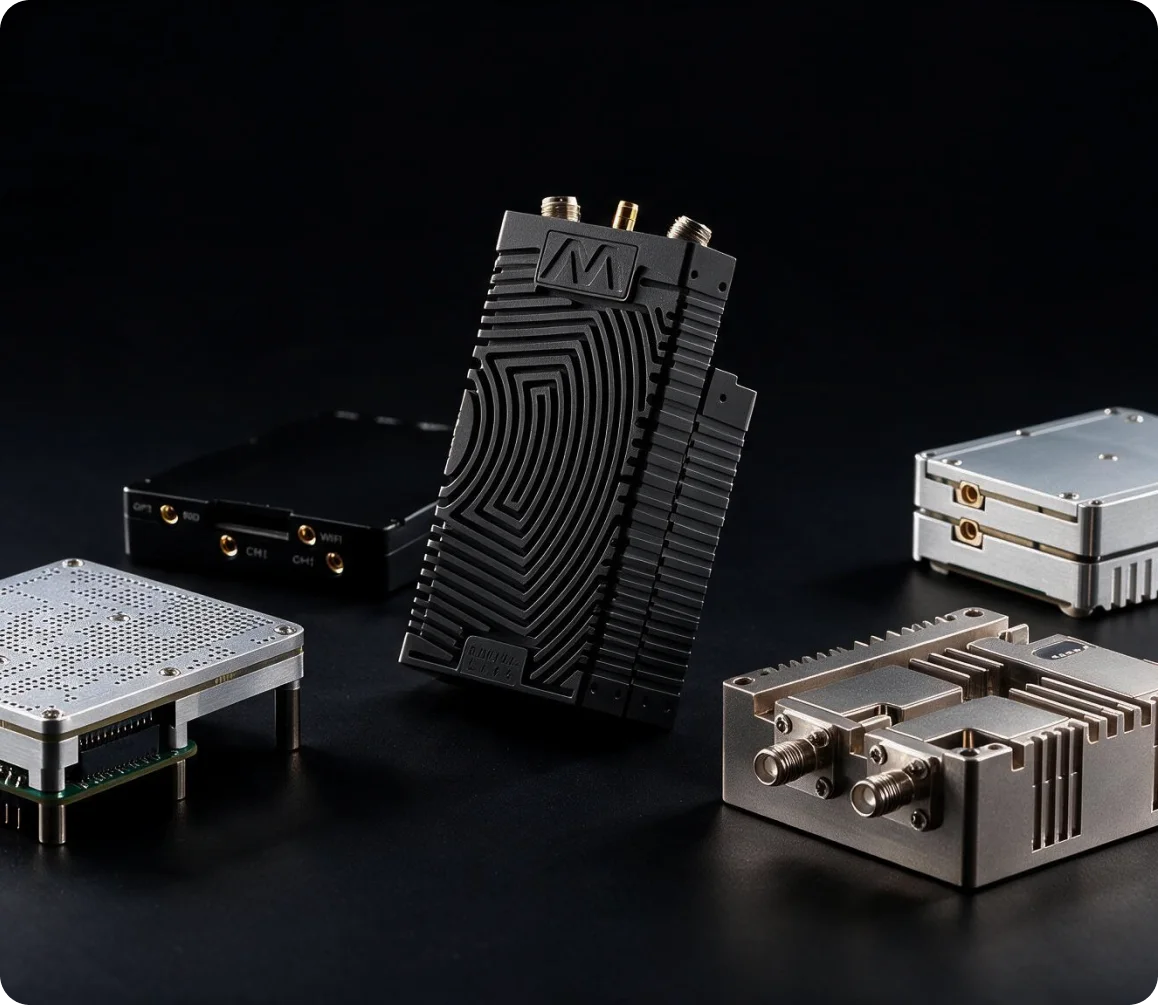

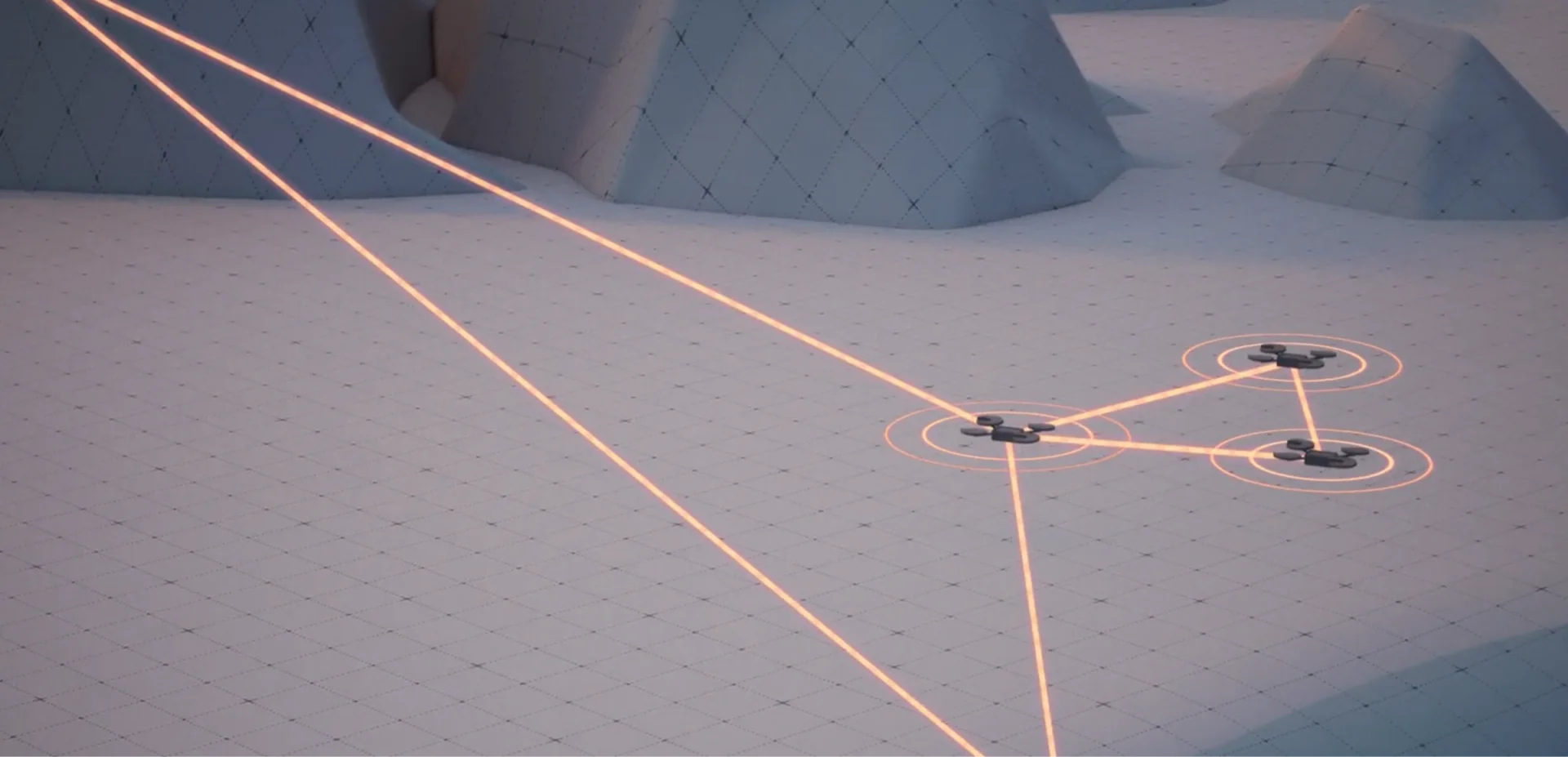

Our Smart Radio is a 2x2 MIMO broadband mesh router that provides wireless links to mobile nodes for private networks, regardless of distance and noise. The Smart Radio Platform integrates our state-of-the-art Mesh Rider® technology that enables dynamic and reliable data links from multiple mobile nodes, allowing our products to be configured to meet unique project requirements.

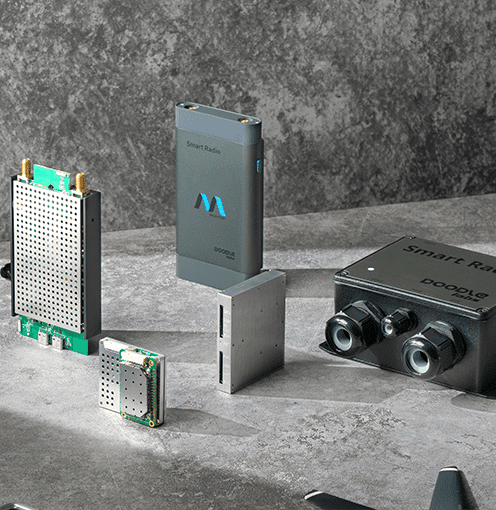

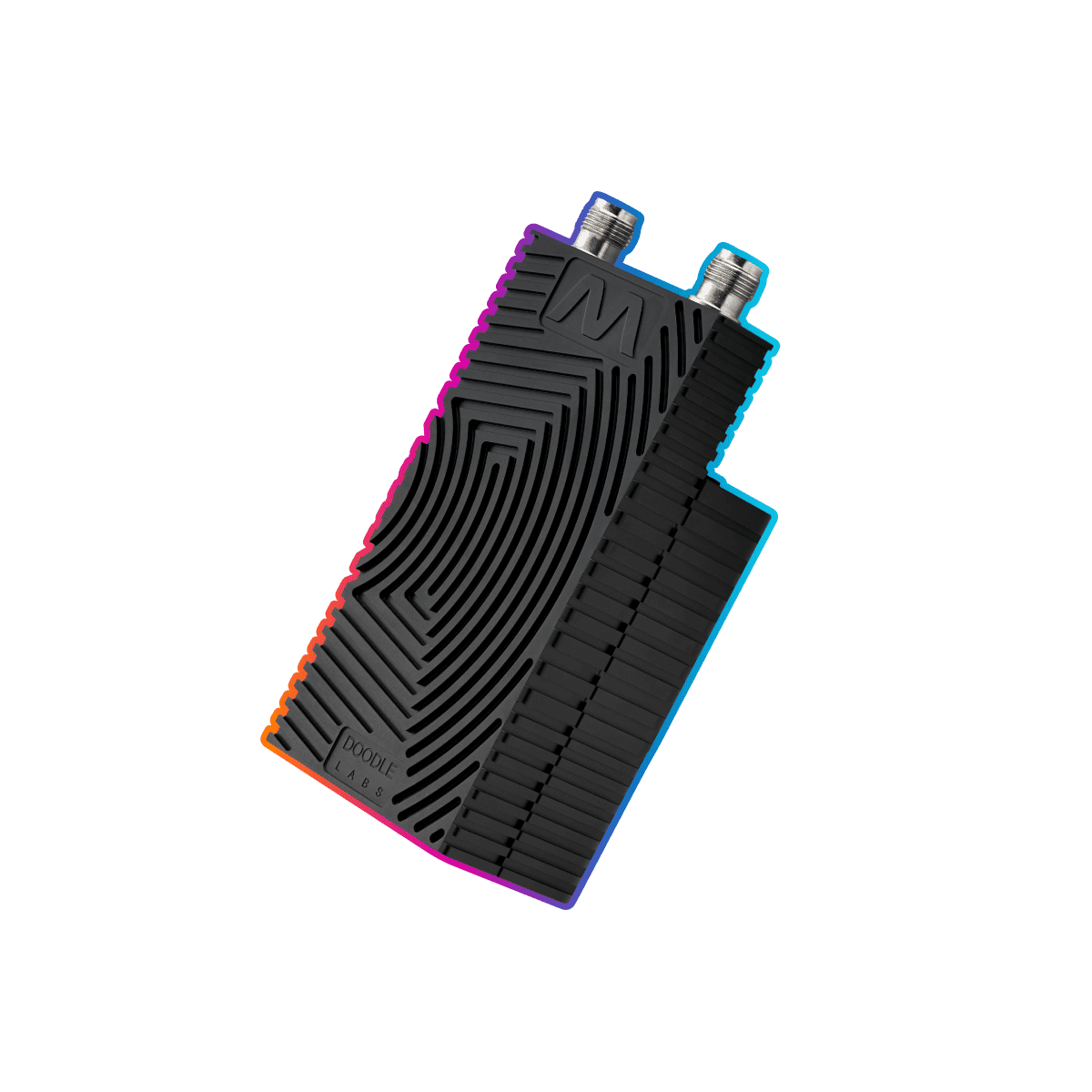

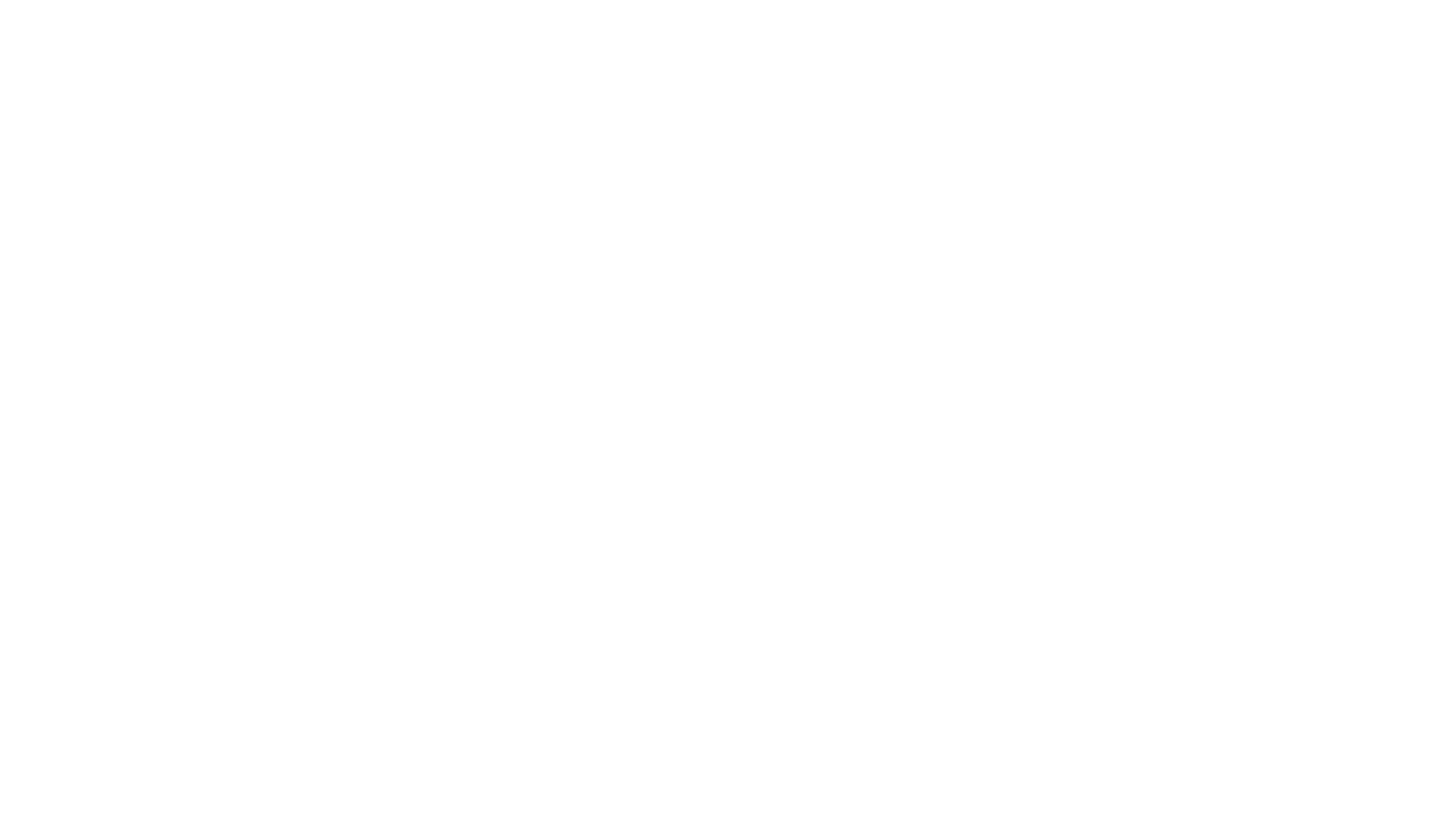

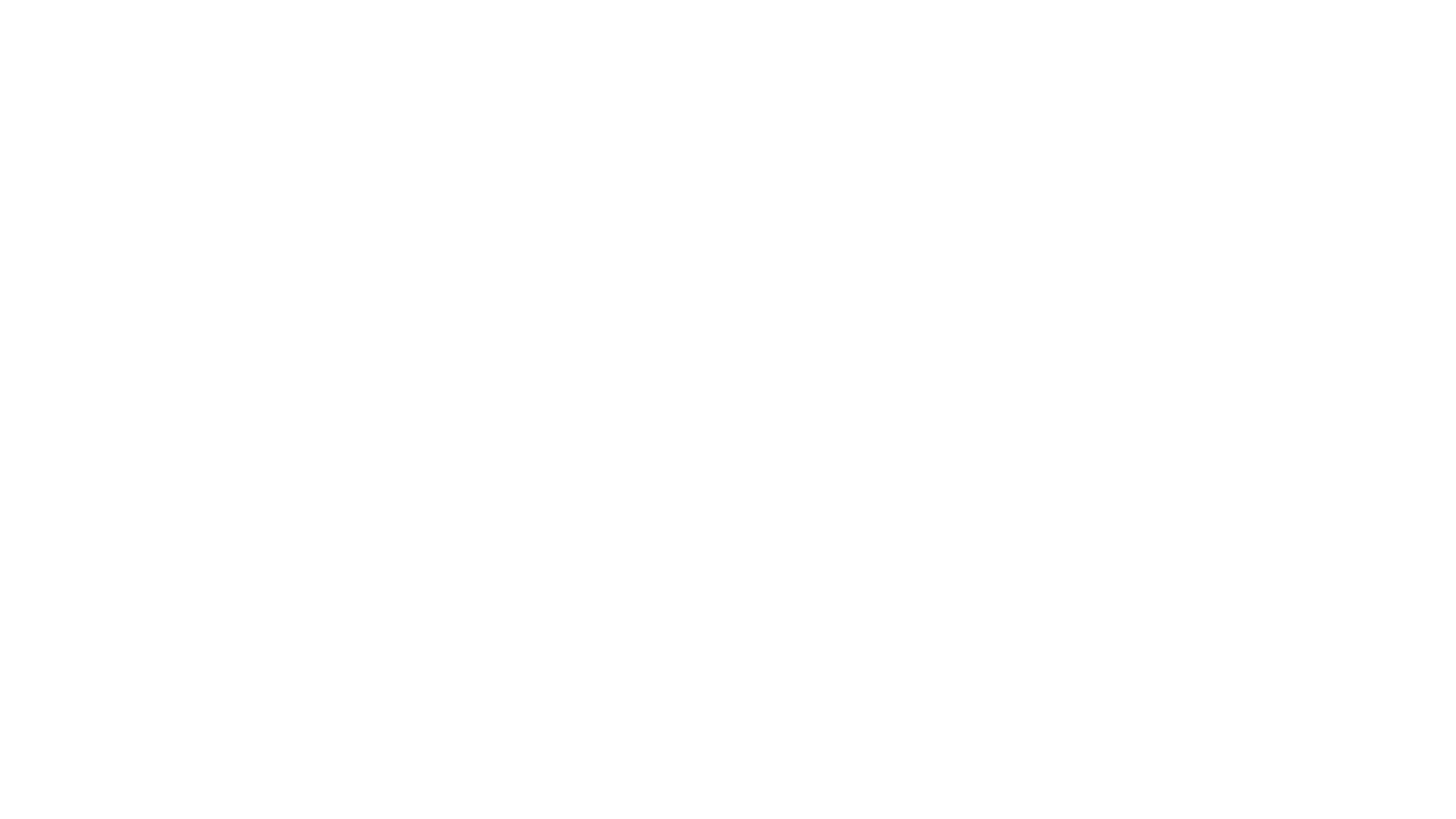

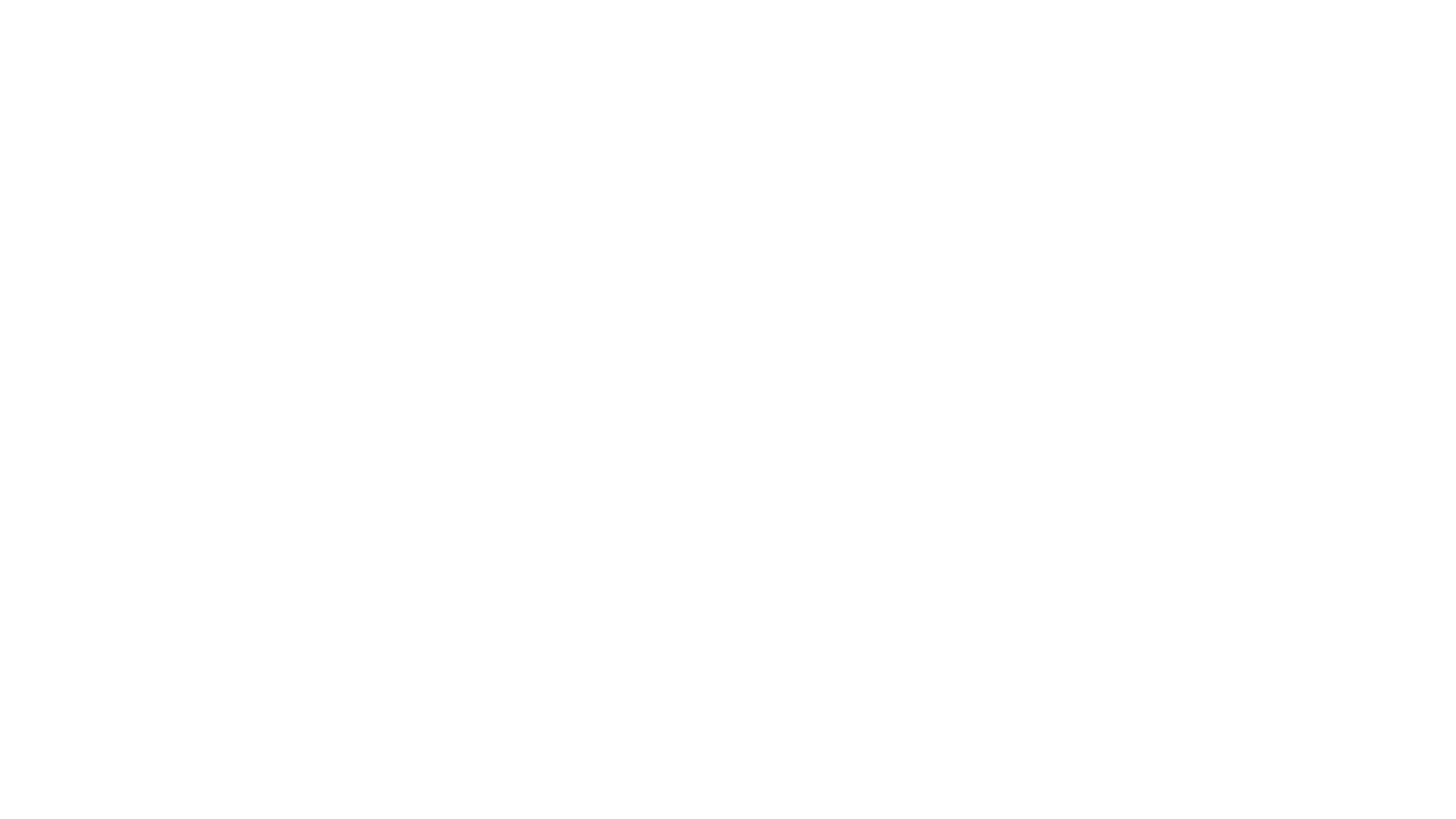

The Smart Radio is available in Embedded, External and Pocketable models.

Industrial Wi-Fi Transceivers

Our Industrial WiFi Transceivers with miniPCIe interfaces for simplified integration with CPU boards and implementation with Linux based applications. This transceiver provides long-range capabilities at the highest power while resisting interference. It has high RF power and ultra receiver sensitivity that allows this transceiver to work at up to 20 kilometers. With an operating temperature range from minus 40 degrees Celsius to 85 degrees Celsius, it will give the performance you expect in harsh conditions.

The Industrial Wi-Fi Transceivers have high power and sensitivity capabilities to deliver a reliable connection on the traditional 2.4 GHz and 5.8 GHz WiFi bands.

Solutions

Case Studies

Doodle Labs products have a wide range of capabilities, as proven by our success stories. Take a look at how we’ve provided innovative technology solutions to the biggest names in the industry:

Elroy Air created a vertical take-off and landing aircraft to carry packages between distribution centers or business owners. They partnered with us to create a solution that had maintained a link past the visual line of sight and with sufficiently high throughput capacities for video streaming over distance.
In the evaluation phase, Paramount Advanced Technologies wanted to test the extremes of the range possible with the our S-Band Smart Radio. So they installed one on a ground control system and put the other radio on a Cessna aircraft. They achieved 116 kilometers using just two RM-2250-2H-XS model Smart Radios, with just a simple 2dBi antenna on the aircraft and a 23 dBi directional antenna at the ground station.

When you partner with us, you are choosing a company that has the experience and tools necessary to meet your strictest requirements. Read more about our capabilities in our case studies below.

Paramount achieves a 106 Km Link

Rajant connects copper mines

Kitty Hawk flies to the future with the Smart Radio

Harris utilizes 1.4 GHz radio for military ground robot

High-Performance RF

Advanced wireless hardware design

Long-Range

Stream 4K video from 10+ km away

Many Frequencies

Any frequency band between 100 MHz – 6 GHz

Industrial-Grade Rugged Construction

Extended temperature range and vibration protection

Customizable Architecture

Modular design that can be configured for OEMs

Easy Integration

Plug and play design and Linux-based firmware

We’re constantly working to push the limits of wireless technology.

Contact Doodle Labs Today

Please get in touch with us to see how we can partner with you on your next Industrial IoT project. We’re constantly working to push the capabilities of wireless technology, and will bring our full expertise to providing a wireless solution for your system.

Find out how our broad range of capabilities can meet and exceed your requirements, by clicking here:
