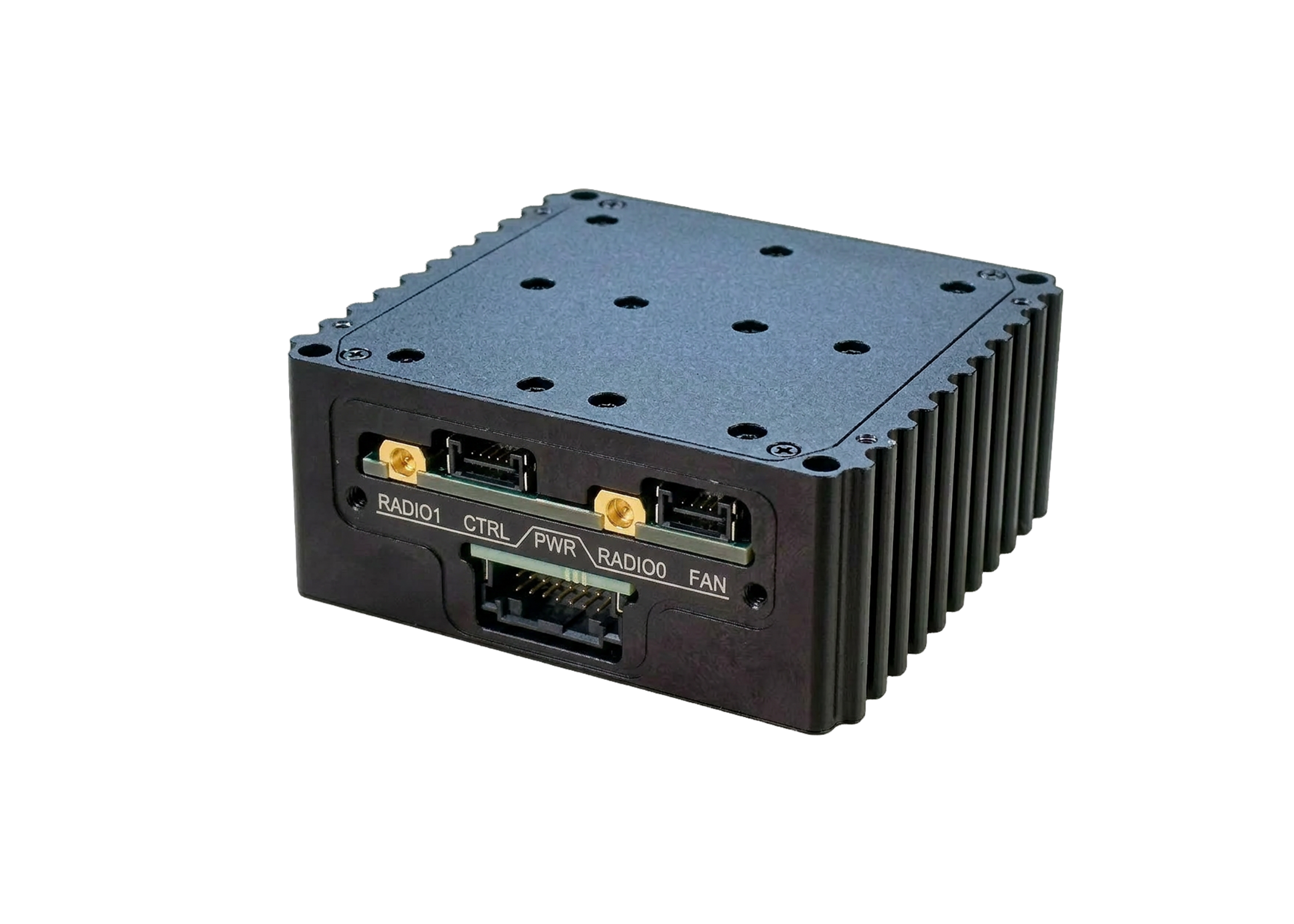

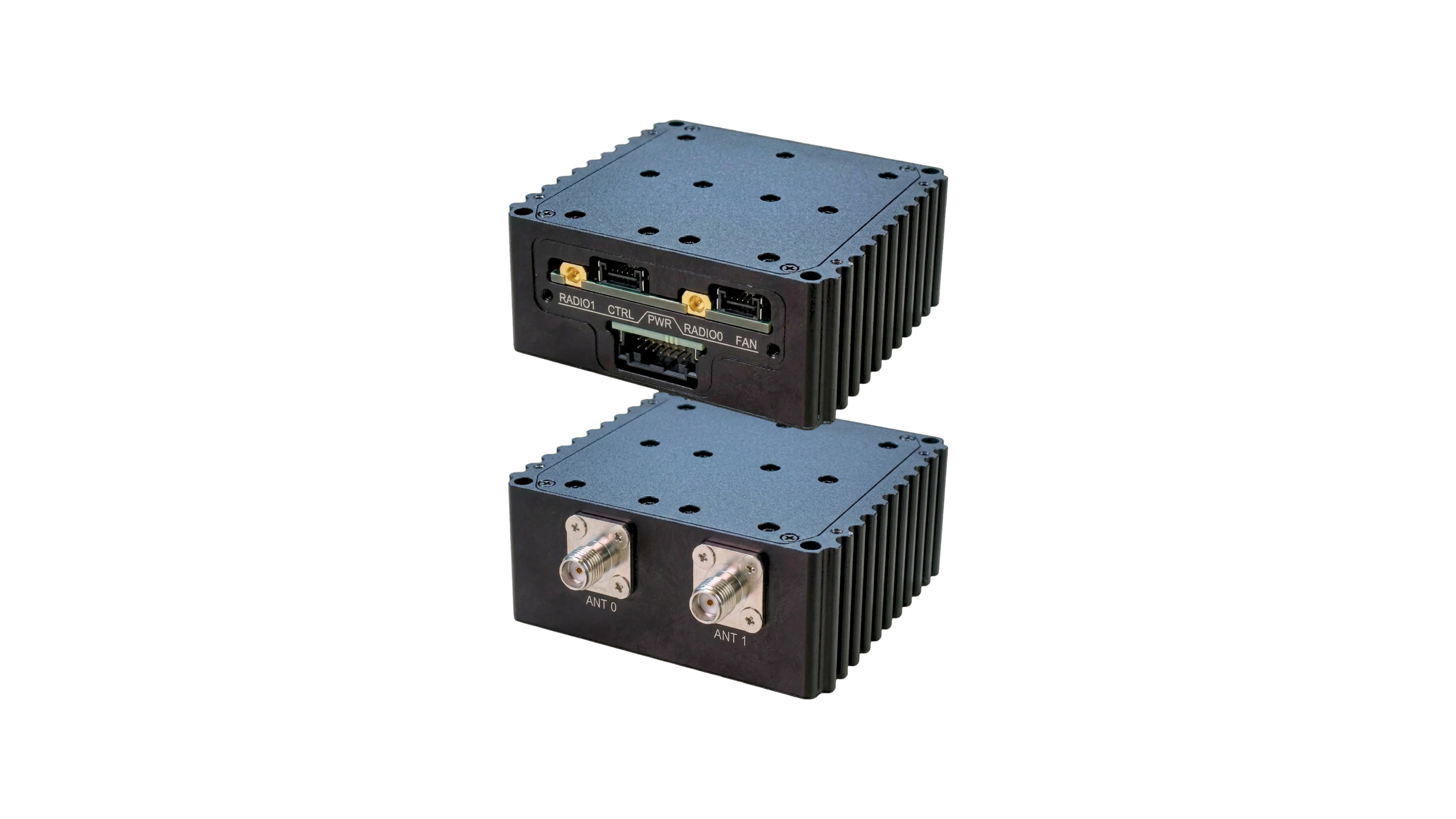

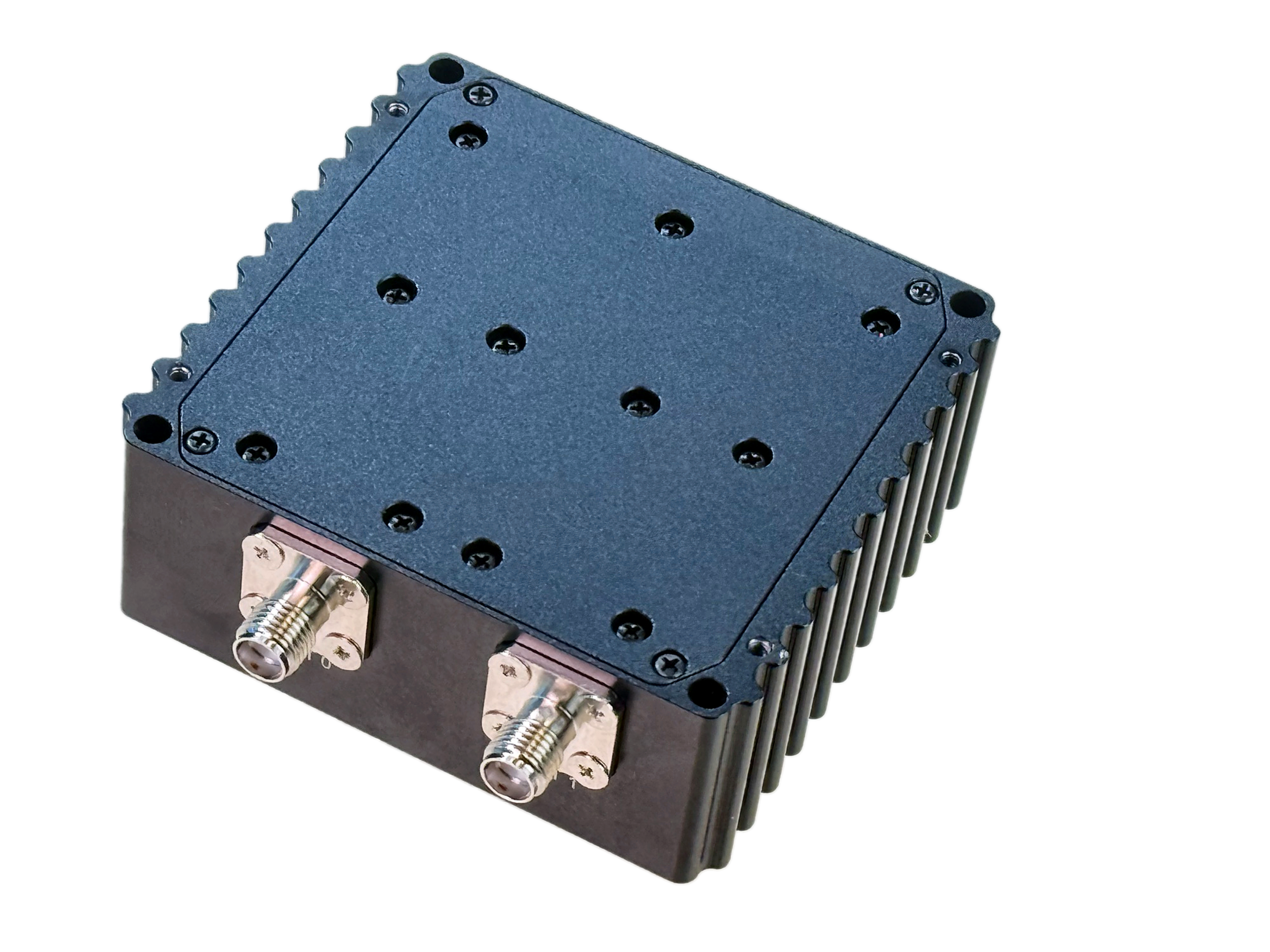

EW Resilience: Improved link margin to maintain connectivity in degraded RF environments
Resiliency: Strengthens both transmit and receive paths for more reliable communications
Signal Enhancement: Up to 36 dBm (4W) transmit output power
Receive Sensitivity: ~8 dB receive gain improves signal detection at range
MIMO: 2×2 bi-directional amplification
Range Extension: Increases operational range and link stability without changing radio architecture
Dimensions: 46.9 × 35.0 × 20.74 mm (without heatsink)
Dimensions: 46.9 × 35.0 × 26.38 mm (with heatsink)
Weight: 147 g (without heatsink)
Interfaces: UART, GPIO (configurable control)
Integration: Designed for direct integration with Mesh Rider radios
Power Input: 5.5 – 30 VDC
Thermal Options: Passive (heatsink) and active cooling configurations available
Frequency Range: 4400 – 6400 MHz
Max Tx Power: 36 dBm (4W)
Transmit Gain: Up to 13 dB
Receive Gain: ~8 dB
Noise Figure: ~3 – 3.5 dB
MIMO: 2×2
Switching: Automatic Tx/Rx switching (~1 µs)
EW Resilience: Improved link margin to maintain connectivity in degraded RF environments
Resiliency: Strengthens both transmit and receive paths for more reliable communications
Signal Enhancement: Up to 36 dBm (4W) transmit output power
Receive Sensitivity: ~8 dB receive gain improves signal detection at range
MIMO: 2×2 bi-directional amplification
Range Extension: Increases operational range and link stability without changing radio architecture
Dimensions: 46.9 × 35.0 × 20.74 mm (without heatsink)
Dimensions: 46.9 × 35.0 × 26.38 mm (with heatsink)
Weight: 147 g (without heatsink)
Interfaces: UART, GPIO (configurable control)
Integration: Designed for direct integration with Mesh Rider radios
Power Input: 5.5 – 30 VDC
Thermal Options: Passive (heatsink) and active cooling configurations available
Frequency Range: 4400 – 6400 MHz
Max Tx Power: 36 dBm (4W)
Transmit Gain: Up to 13 dB
Receive Gain: ~8 dB
Noise Figure: ~3 – 3.5 dB
MIMO: 2×2
Switching: Automatic Tx/Rx switching (~1 µs)
Frequency
4400–6400 MHz (C Band)
Model
BDA-4464-04-22O2
Connectors
JST; Pin Header
Frequency
1625 – 2500 MHz (M1-M6 Bands)
Model
Coming Soon
Frequency
4400–6400 MHz (C Band)
Model
BDA-4464-04-22O2
Connectors
JST; Pin Header
Frequency
1625 – 2500 MHz (M1-M6 Bands)
Model
Coming Soon
46.9x35x20.74mm
48.3 grams
Ethernet (100 Base-T)
USB Dev
USB Host
UARTX1
GPIOX3
50+ km
80 Mbps
46x51x6.5mm
34 grams
Ethernet (100 Base-T)
USB Dev
USB Host
UARTX1
GPIOX3
50+ km
80 Mbps
57×86×13mm
102 grams
Ethernet (100 Base-T)
USB Dev
USB Host
UART
WiFi
50+ km
80 Mbps
WiFi
GPS
46.9 × 35.0 × 20.74 mm (without heatsink)
46.9 × 35.0 × 26.38 mm (with heatsink)
147 grams (without heatsink)
GPIO (configurable control)
5.5–30 VDC input
Extended range via 36 dBm (4W) amplification
Improved link margin and signal reliability (Tx + Rx amplification)
134.3×63.0×17.0m
311 grams
Ethernet (100 Base-T)
USB Dev
USB Host
UART
50+ km
80 Mbps
WiFi
GPS
