Compact
Compact without compromise
Nano² runs the same self-forming, self-healing mesh networking and Sense-EW resilience as Doodle Labs’ larger Mesh Rider radios, so smaller platforms hold the same link quality in contested RF.
Learn moreOur products

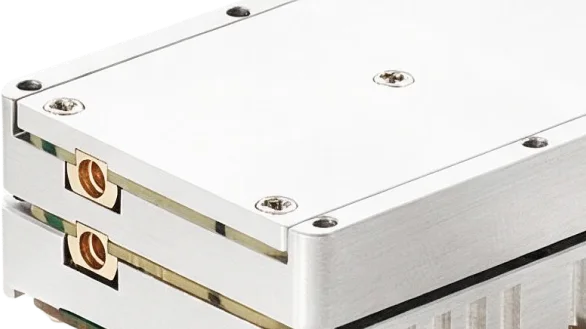

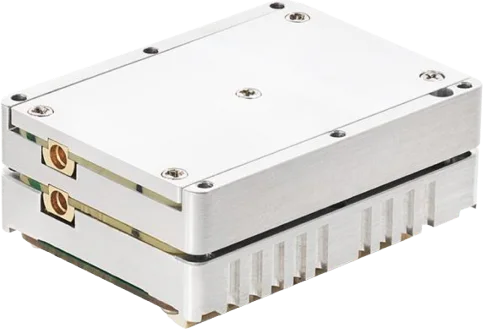

The Nano²
Full Mesh Rider performance in a small form factor.
Nano² packs powerful throughput, range, and mesh networking capabilities into a footprint built for space-constrained FPV, quadcopter and interceptor platforms.
Best fit
Best fit for the tightest SWaP platforms
Built for FPV, interceptors and compact Group 1 UAS where every gram and millimeter matter. Nano² delivers full Mesh Rider performance in the smallest mounting footprint, without asking smaller platforms to give up throughput, range, mesh networking or Sense EW.
Learn moreFlexible
Purpose-built for FPV and interceptor platforms
Nano²’s compact size fits into the tightest FPV and C-UAS interceptor airframes, including mounting directly on the center rail where a larger radio would not fit.
Learn morePerform
High performance, smaller footprint.
Up to 80 Mbps of throughput and 50+ km of video range in a compact mounting footprint, so platforms with the tightest SWaP budgets do not have to trade capability for size.
Learn moreNano²
Specifications
Nano²
- 80 Mbps
- Max Throughput
- 6 Bands
- In One Radio
- 50+ km
- Typical Range
- 48.3 g
- Low SWaP
Mesh Rider
| Mesh | Self-forming / self-healing, peer to peer |
|---|---|
| Resiliency | Dual-Radio Operation; seamless failover multi-node relay, MIMO |
| Sense EW | Advanced anti-jamming |
Performance
| Operating range | HD video streaming over 80+ km |
|---|---|
| Max data throughput | 80 Mbps |
| Security | FIPS 140-3 / AES-256 / AES-128 |
Hardware Specifications
| Frequencies | Multiband: 900 MHz + 2.4 GHz, M1-M6, L+S. Single Band: 2.4 GHz |
|---|---|
| Dimensions | 46.9 × 35 × 20.7 mm |
| Weight | 48.3 g |
| Interfaces | Ethernet (100 Base-T); USB Dev; USB-Host, UART × 1, GPIO × 3 |
| Connectors | JST; Pin Header |
| Antenna connectors | MMCX |
| Max Tx Power | 1.6 watts; 32 dBm |
| Power consumption | 5 W (avg), 8 W (peak) |
