Boost

Boost strengthens the link to extend range

Boost strengthens the transmit and receive sides of the link, extending range and holding up in difficult RF environments across NATO-C, Federal, M1-M6 hex bands, and ISM spectrum.

Learn more Contact sales

Our products

Find your amplifier

Boost C-Band

Boost C-Band strengthens the transmit and receive sides of the link, extending range and holding up in difficult RF environments across NATO-C, Federal, and ISM spectrum

Learn more

Boost S-Band

Boost S-Band strengthens the transmit and receive sides of the link, extending range and holding up in difficult RF environments across the M1–M6 hex bands

Learn more

Strengthen

Strengthens both sides of the link

Boost adds up to 4 watts of transmit output and additional receive gain, improving the link budget in both directions.

Learn more

Extend

Extends range without replacing the radio

Boost integrates directly with Mesh Rider radios already in the field, extending range and helping preserve higher data rates on the radio and network already in place.

Learn more

VersAtile

Built for C and S band operations

Two versions of Boost cover C and S band operation, for long-range fixed-wing UAVs, larger drones, USVs operating far from shore, and UGVs across large or obstructed areas.

Learn more

Mission match

Doodle Labs blends software intelligence with best-in-class SDR hardware to

Keep command & control

Keep platforms connected to operators and command.

Prioritize critical data

Carry command, video, and telemetry on one link.

Preserve autonomy

Connect autonomous systems to the wider network.

Protect operators & tech

Keep teams connected, protect operators & valuable technology

Adapt dynamically

Respond to changing links and RF conditions dynamically

Work collaboratively

Bring every platform onto one coordinated network.

Contact sales

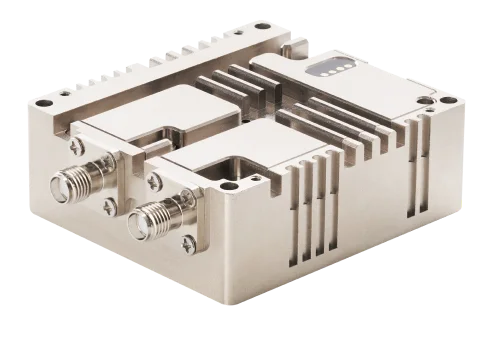

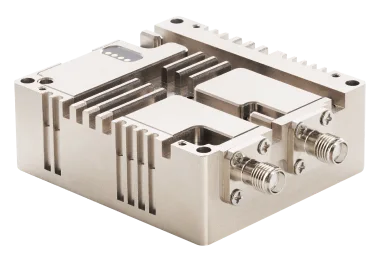

Boost C-Band

Specifications

100 km: Operating Range
4 W: RF Output
40 dB: Tx / Rx Isolation
150 g: Weight

Performance

Boost C-Band Performance
Max Tx Output Power	4 W
Tx/Rx Switching Time	0.2 / 0.4 µs (min/max)
Tx/Rx Isolation	40 dB
Operating Range	100 km

Signal Enhancement

Boost C-Band Signal Enhancement
Tx power gain	5-13 dB (min/typ)
rx (lna) Gain	10 dB
Bypass mode (tx)	-2.5 / -3 / -3.5 dB (min/typ/max)

Hardware Specifications

Boost C-Band Hardware Specifications
frequency range	4400-6400 MHz (NATO-C + Federal + ISM)
Dimensions	58.5 x 53.4 x 21.2 mm
Weight	150 g
Interfaces	UART, GPIOs
Radio-side Connector	MMCX
Antenna Connector	SMA (female)
Module Efficiency (Tx)	13%
Power Consumption	16 W avg (50% Tx/Rx duty); 32 W peak (Tx mode, max @ 4 W)

Talk to sales Download Specs

About us

We design radios that are engineered to go further and stay connected longer.

Doodle Labs partners with you to achieve the distance you need to successfully complete your mission. We ensure operators can rely on our technology up to the farthest edges of their mission boundaries.

Talk to sales

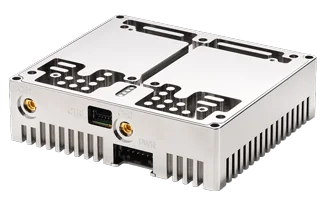

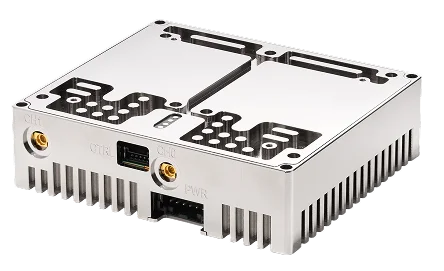

Boost S-Band

Specifications

100 km: Operating Range
4 W: RF Output
40 dB: Tx / Rx Isolation
360 g: Weight

Performance

Boost S-Band Performance
Max Tx Output Power	4 W
Tx/Rx Switching Time	0.2 / 0.4 µs (min/max)
Tx/Rx Isolation	40 dB
Operating Range	100 km

Signal Enhancement

Boost S-Band Signal Enhancement
Tx power gain	5-12 dB (min/typ)
rx (lna) Gain	15 dB
Bypass mode (tx)	-3 dB (typ)

Hardware Specifications

Boost S-Band Hardware Specifications
frequency range	1625-2500 MHz (M1-M6 hex bands)
Dimensions	85.6 x 74.6 x 23.1 mm
Weight	360 g
Interfaces	UART, GPIOs
Radio-side Connector	MMCX
Antenna Connector	SMA (female)
Module Efficiency (Tx)	13%
Power Consumption	16 W avg (50% Tx/Rx duty); 32 W peak (Tx mode, max @ 4 W)
