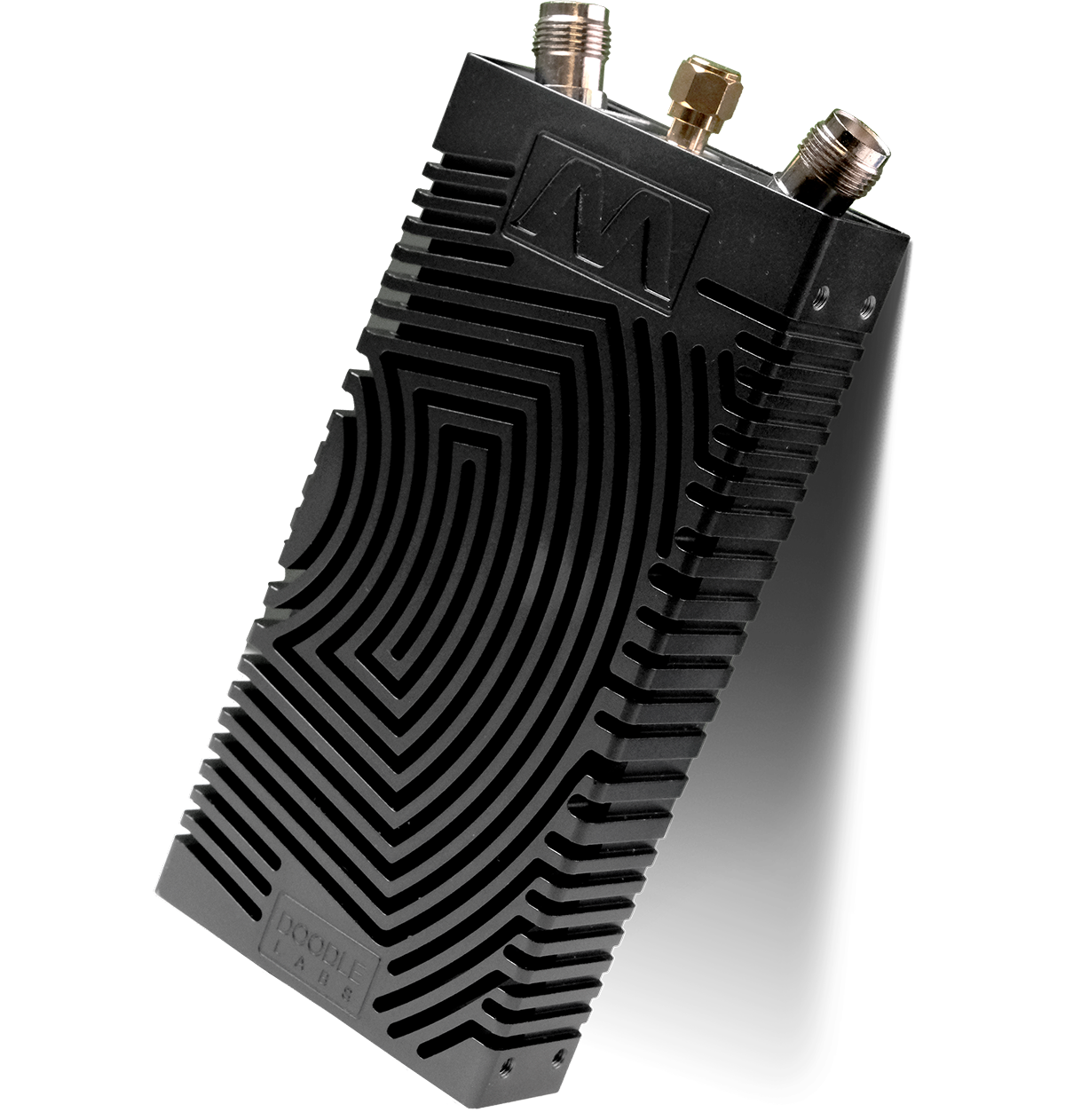

Operating Range: Up to 2 km HD video streaming ground to ground; over 80+km ground to air
Max Data Throughput: 80Mbps
Easy to Use: Connect mobile devices to the Mesh Rider network
Networking Modes: Mesh, WDS AP, WDS Client, Dynamic Mesh, Multi-Radio Mesh Mode
Internet Gateway: Network Extension Integration with cell phones
and LTE and satellite radios
Security: FIPS 140-3, AES-256 bit, AES-128 bit
TAK: Seamless integration with Civilian and Government Team Awareness Kit frameworks

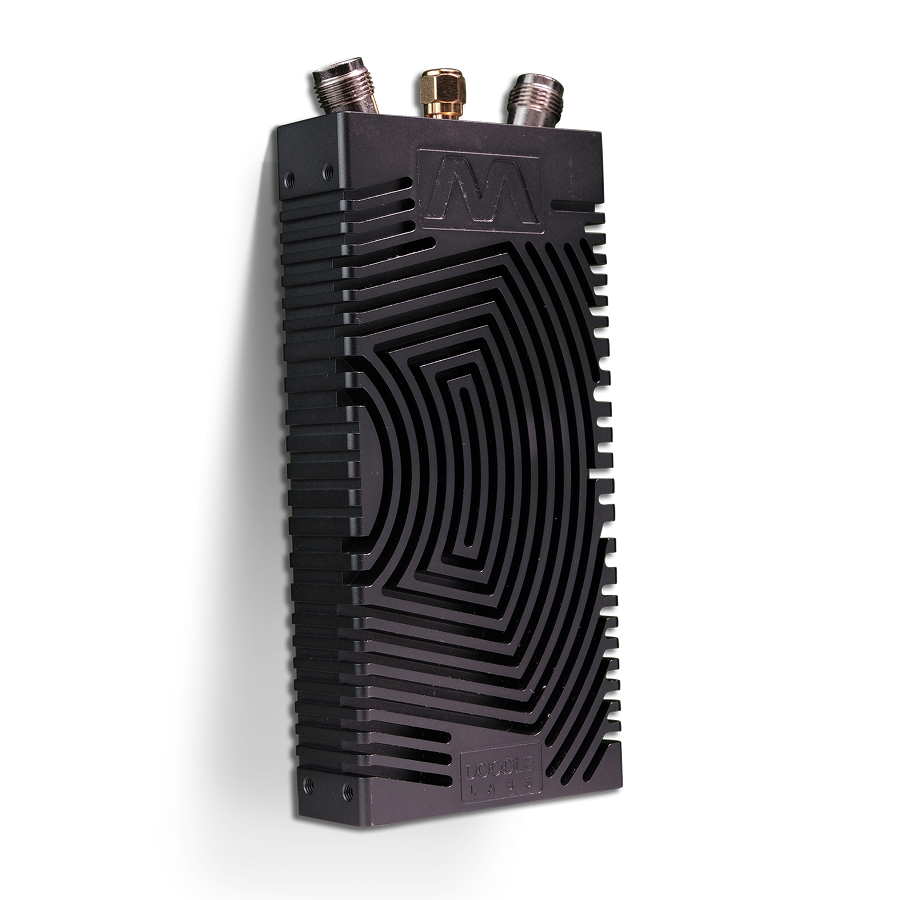

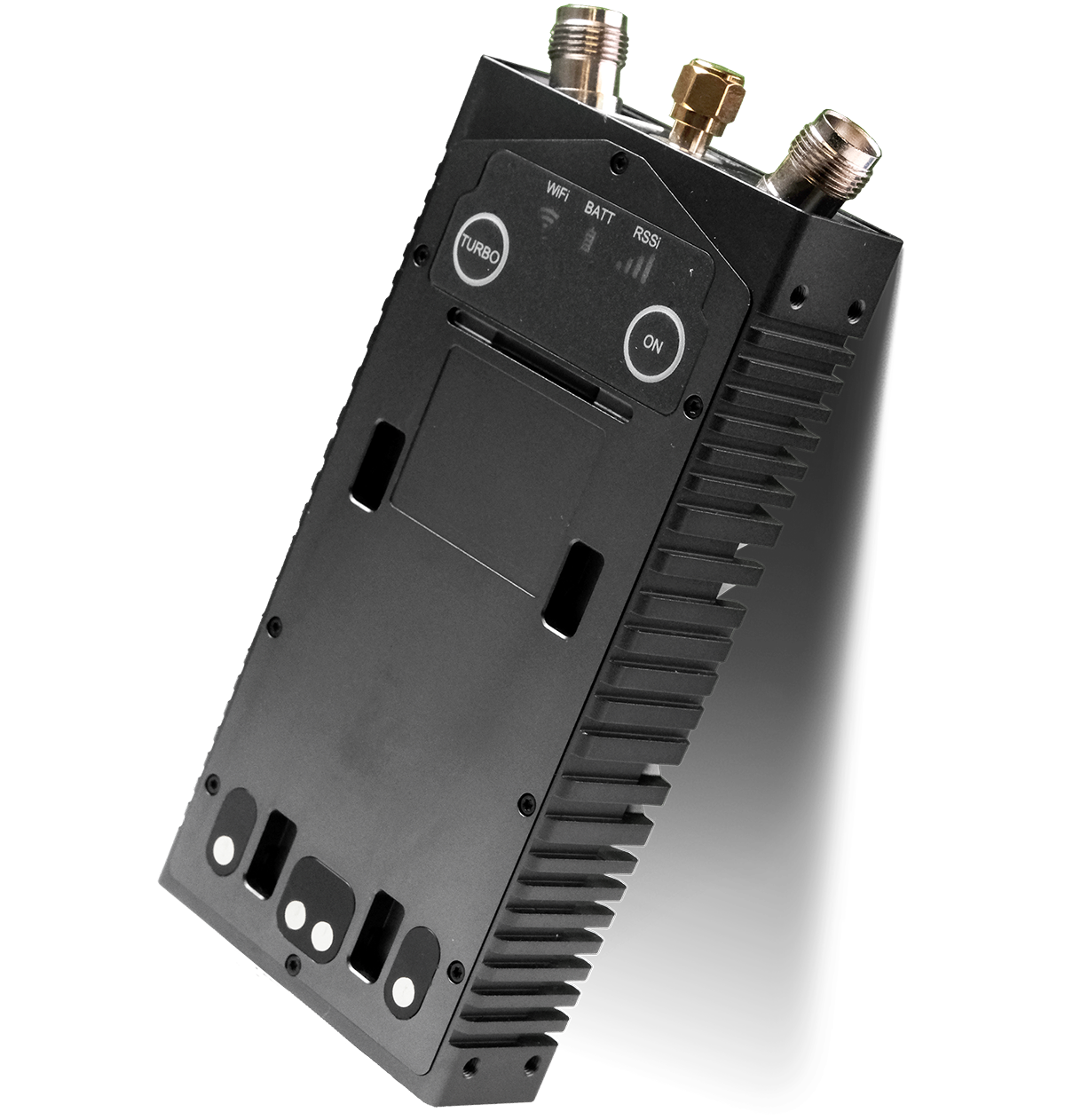

Dimensions: 134.3mm x 63.0mm x 17.0mm
Weight: 311 grams
Interfaces: Ethernet (100 Base-T); USB-Dev; USB-Host, UART
Connectors: USB-C locking x2

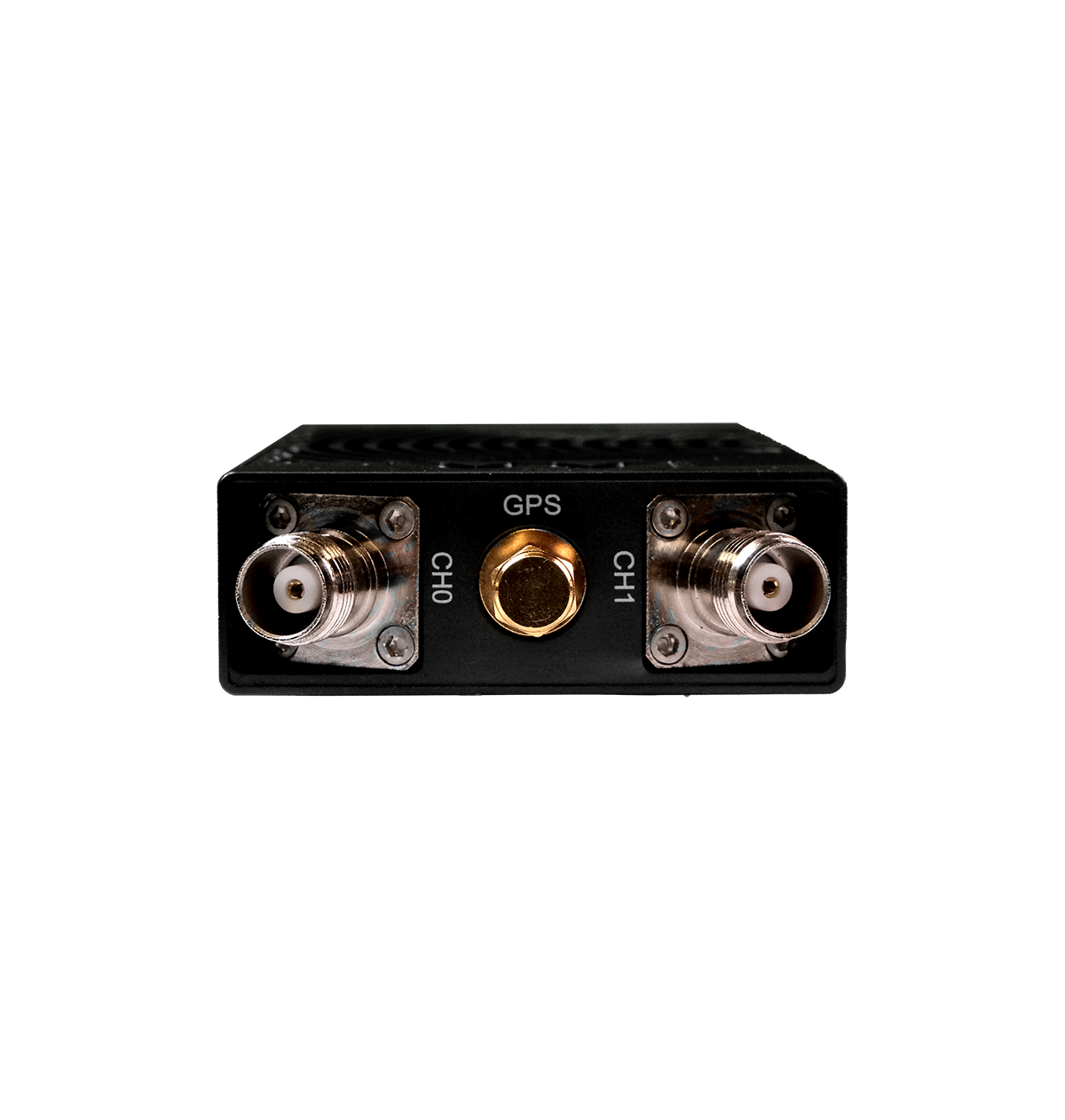

Antenna Connectors: TNC
Power Consumption: 14W (peak) 6W (receive) 2W standby
Battery Capacity: 35 Wh (Expected run time 8-10 hours)
2x 21700 Li-on cells, BMS
Battery Dimensions: 88x60x25mm
Battery Weight: 300 grams
Defense: L, S, NATO-C, Public Safety
Commercial: ISM, WiFi, Japan Robotics, Federal
Max Tx Power: 1.6 watts (32 dBm)
Channel Sizes: 20/15/10/5/3 MHz
Operating Range: Up to 2 km HD video streaming ground to ground; over 80+km ground to air
Max Data Throughput: 80Mbps
Easy to Use: Connect mobile devices to the Mesh Rider network
Networking Modes: Mesh, WDS AP, WDS Client, Dynamic Mesh, Multi-Radio Mesh Mode
Internet Gateway: Network Extension Integration with cell phones
and LTE and satellite radios
Security: FIPS 140-3, AES-256 bit, AES-128 bit
TAK: Seamless integration with Civilian and Government Team Awareness Kit frameworks
Dimensions: 134.3mm x 63.0mm x 17.0mm
Weight: 311 grams
Interfaces: Ethernet (100 Base-T); USB-Dev; USB-Host, UART
Connectors: USB-C locking x2
Antenna Connectors: TNC
Power Consumption: 14W (peak) 6W (receive) 2W standby
Battery Capacity: 35 Wh (Expected run time 8-10 hours)
2x 21700 Li-on cells, BMS
Battery Dimensions: 88x60x25mm
Battery Weight: 300 grams
Defense: L, S, NATO-C, Public Safety
Commercial: ISM, WiFi, Japan Robotics, Federal
Max Tx Power: 1.6 watts (32 dBm)
Channel Sizes: 20/15/10/5/3 MHz
Frequency
1625–2500 MHz (S Band)
Model
RM-2025-62W3
Connectors
USB-C
Frequency
4400 – 5920 MHz (C Band)
Model
RM-5200-92W3
Connectors
USB-C
Frequency
1350–1390 + 2200–2510 MHz (L + S Band)
Model
RM-2100-42W3
Connectors
USB-C
Frequency
255 MHz, 2245 – 2450 MHz
Model
RM-1300-42W3
Connectors
USB-C
Frequency
455 MHz, 2245 – 2450 MHz
Model
RM-1400-42W3
Connectors
USB-C
Frequency
1625–2500 MHz (S Band)
Model
RM-2025-62W3
Connectors
USB-C
Frequency
4400 – 5920 MHz (C Band)
Model
RM-5200-92W3
Connectors
USB-C
Frequency
1350–1390 + 2200–2510 MHz (L + S Band)
Model
RM-2100-42W3
Connectors
USB-C
Frequency
255 MHz, 2245 – 2450 MHz
Model
RM-1300-42W3
Connectors
USB-C
Frequency
455 MHz, 2245 – 2450 MHz
Model
RM-1400-42W3
Connectors
USB-C

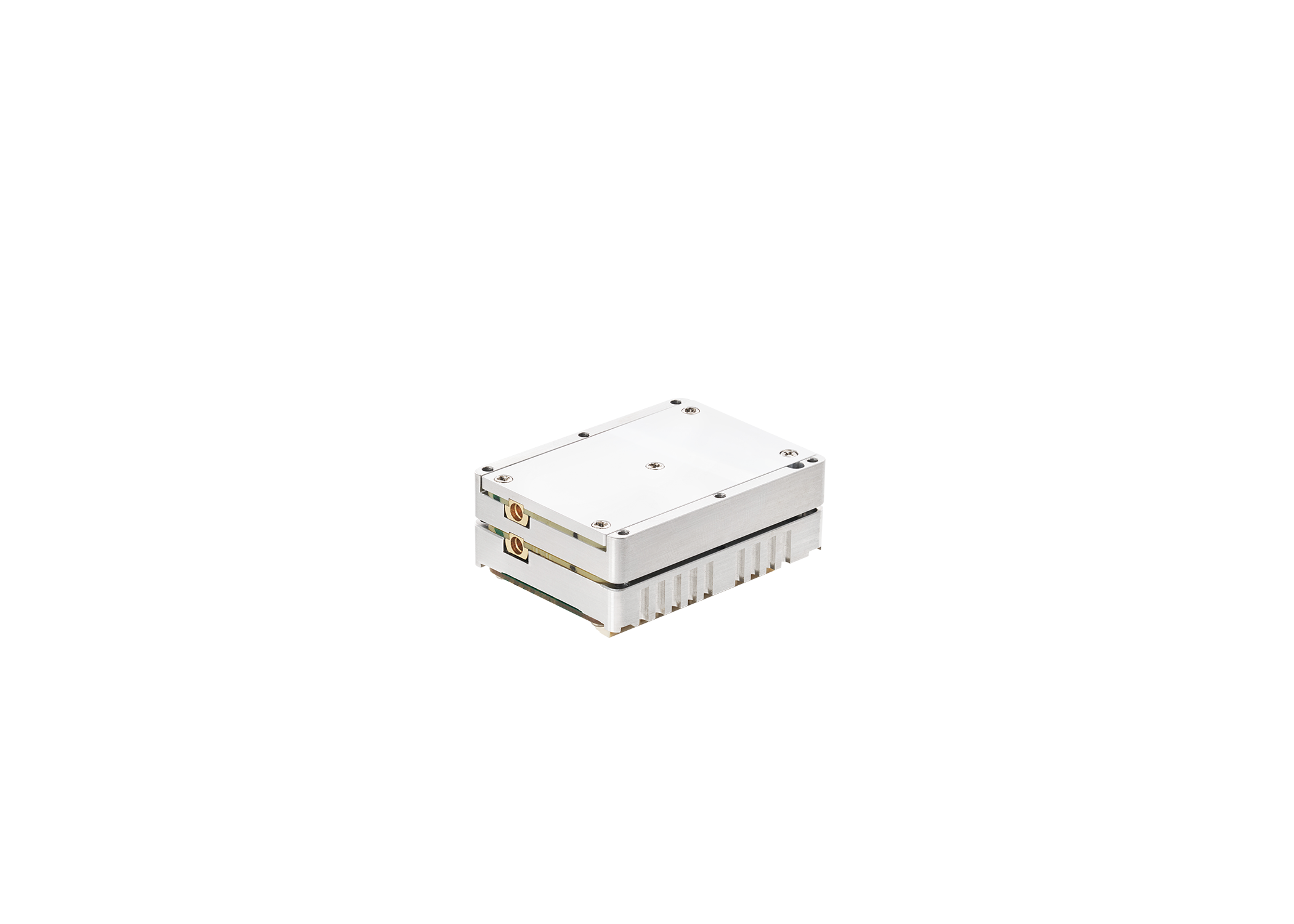

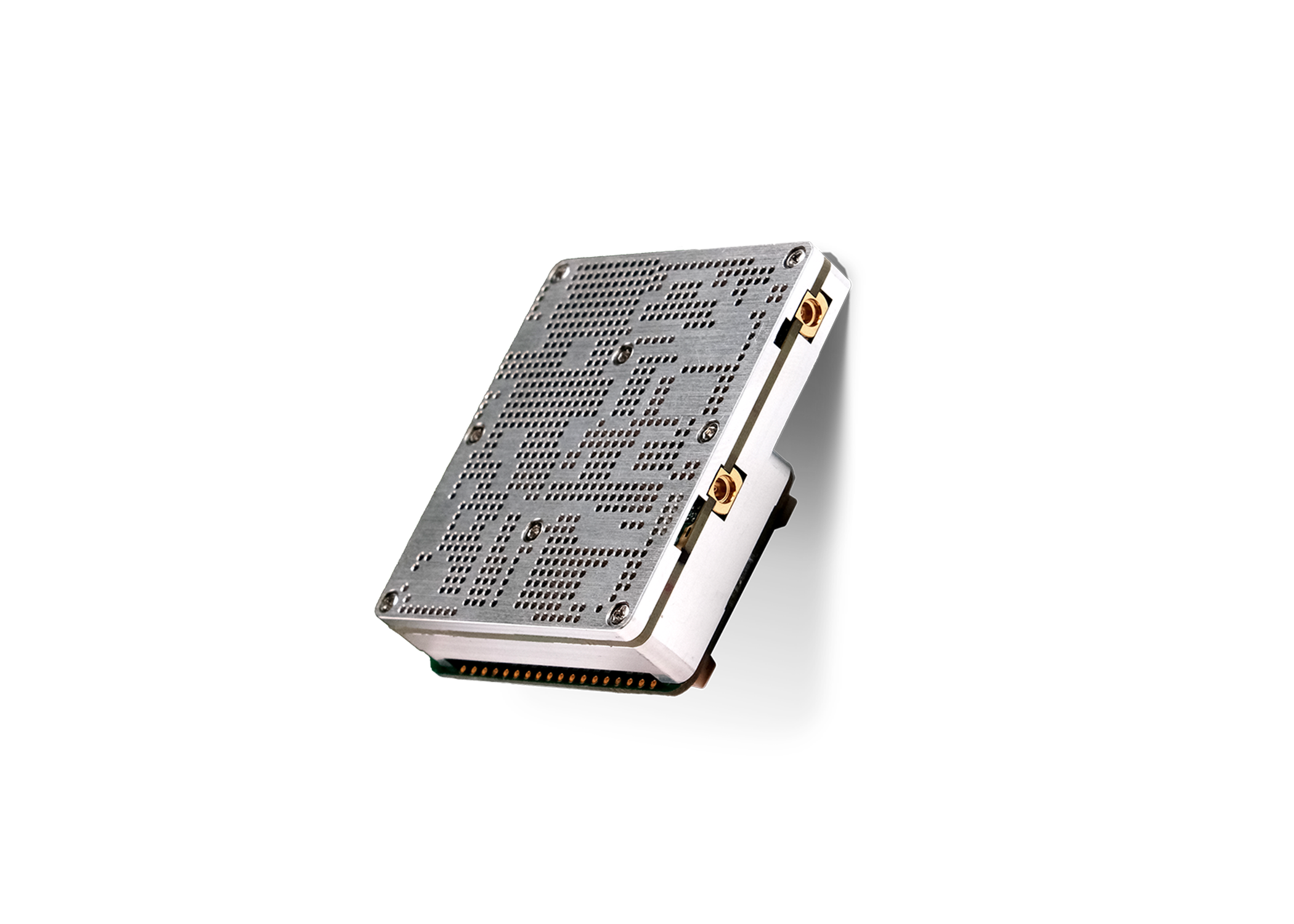

46x51x6.5mm
34 grams
Ethernet (1000 Base-T)
USB Dev
USB Host
UARTX1
GPIOX3
50+ km
80 Mbps
57×86×13mm
102 grams
Ethernet (1000 Base-T)
USB Dev
USB Host
UART
WiFi
50+ km
80 Mbps
WiFi
GPS
134.3×63.0×17.0m
311 grams
Ethernet (1000 Base-T)
USB Dev
USB Host
UART
50+ km
80 Mbps
WiFi
GPS
28×47×6.5mm
25 grams
Ethernet (1000 Base-T)
USB Dev
USB Host
UARTX1
GPIOX3
5+ km
40 Mbps
