EW Resilience: Advanced suite of anti jamming protocols
Resiliency: Dual-Radio Operation; LTE Failover; Multi-Node Relay
Mesh: Self-Forming / Self-Healing; Peer to Peer
Max Operating Range: 330 km (field proven)
Max Data Throughput: 80 Mbps
Security: FIPS 140-3, AES-256 bit, AES-128 bit
Networking Modes: Mesh, Relay, P2MP, WDS AP, WDS Client, Internet Gateway
Command & Control: Ultra-Reliable Low Latency Channel (URLLC), Latency 1.5-10 ms
Dimensions: 46.9x35x20.74mm
Weight: 36.5g
Interfaces: I/O: Ethernet (100 Base-T); USB-Dev; USB-Host, UARTx1, GPIOx3
Connectors: JST; Pin Header
Antenna Connectors: MMCX
Power Consumption: 5W (average) 8W (peak)
Defense: L, S
Commercial: ISM, WiFi
Max Tx Power: 1.6 watts (32 dBm)
MIMO: 2×2
Channel Sizes: 20/15/10/5/3 MHz
EW Resilience: Advanced suite of anti jamming protocols
Resiliency: Dual-Radio Operation; LTE Failover; Multi-Node Relay
Mesh: Self-Forming / Self-Healing; Peer to Peer
Max Operating Range: 330 km (field proven)
Max Data Throughput: 80 Mbps
Security: FIPS 140-3, AES-256 bit, AES-128 bit
Networking Modes: Mesh, Relay, P2MP, WDS AP, WDS Client, Internet Gateway
Command & Control: Ultra-Reliable Low Latency Channel (URLLC), Latency 1.5-10 ms
Dimensions: 46.9x35x20.74mm
Weight: 36.5g
Interfaces: I/O: Ethernet (100 Base-T); USB-Dev; USB-Host, UARTx1, GPIOx3
Connectors: JST; Pin Header
Antenna Connectors: MMCX
Power Consumption: 5W (average) 8W (peak)
Defense: L, S
Commercial: ISM, WiFi
Max Tx Power: 1.6 watts (32 dBm)
MIMO: 2×2
Channel Sizes: 20/15/10/5/3 MHz

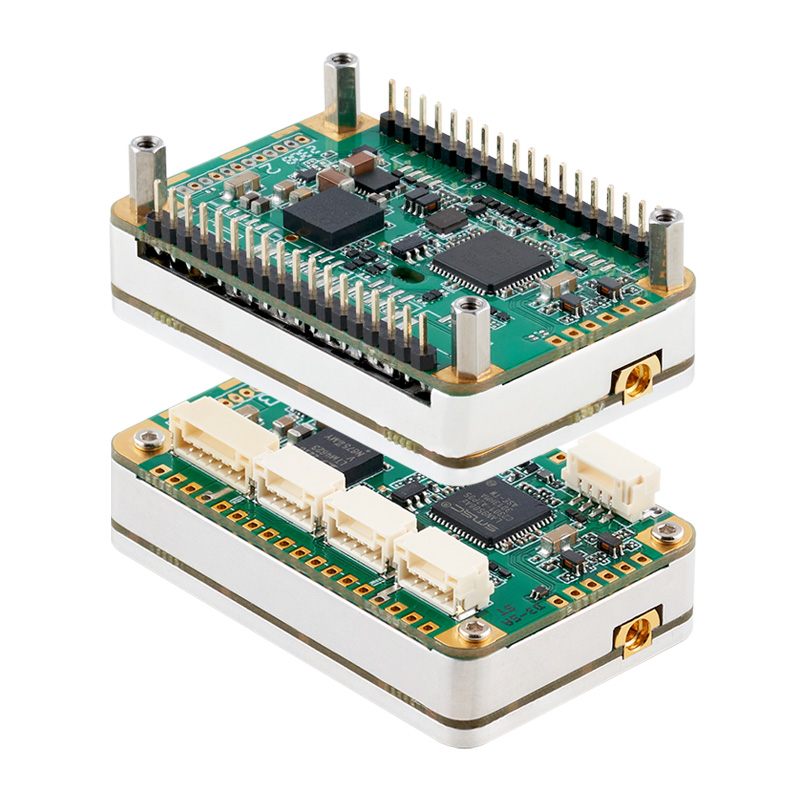

Frequency
1625 – 2500 MHz (M1-M6 Bands)
Model
RM-2025-62S3 (JST)
Connectors
JST; Pin Header
Frequency
1350 – 1390 + 2200 – 2500 MHz (L + S Band)
Model
Coming Soon
Connectors
JST; Pin Header
Frequency
1625 – 2500 MHz (M1-M6 Bands)
Model
RM-2025-62S3 (JST)
Connectors
JST; Pin Header
Frequency
1350 – 1390 + 2200 – 2500 MHz (L + S Band)
Model
Coming Soon
Connectors
JST; Pin Header
46.9x35x20.74mm
36.5 grams
Ethernet (100 Base-T)
USB Dev
USB Host
UARTX1
GPIOX3
50+ km
80 Mbps
46x51x6.5mm
34 grams
Ethernet (100 Base-T)
USB Dev
USB Host
UARTX1
GPIOX3
50+ km
80 Mbps
57×86×13mm
102 grams
Ethernet (100 Base-T)
USB Dev
USB Host
UART
WiFi
50+ km
80 Mbps
WiFi
GPS
46.9 × 35.0 × 20.74 mm (without heatsink)
46.9 × 35.0 × 26.38 mm (with heatsink)
147 grams (without heatsink)
GPIO (configurable control)
5.5–30 VDC input
Extended range via 36 dBm (4W) amplification
Improved link margin and signal reliability (Tx + Rx amplification)
134.3×63.0×17.0m
311 grams
Ethernet (100 Base-T)
USB Dev
USB Host
UART
50+ km
80 Mbps
WiFi
GPS
to learn how Doodle Labs can meet your defense needs.
